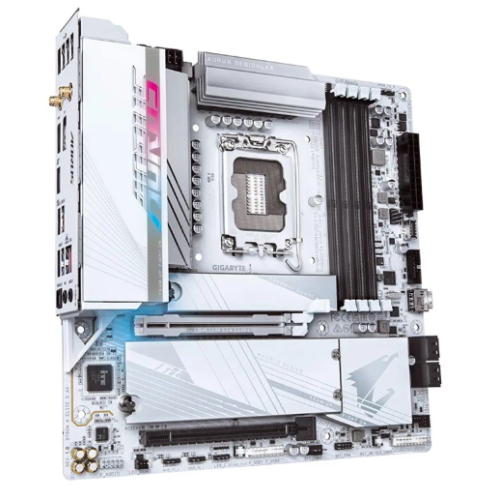

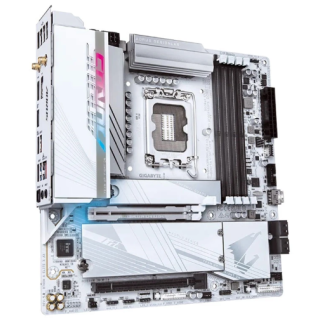

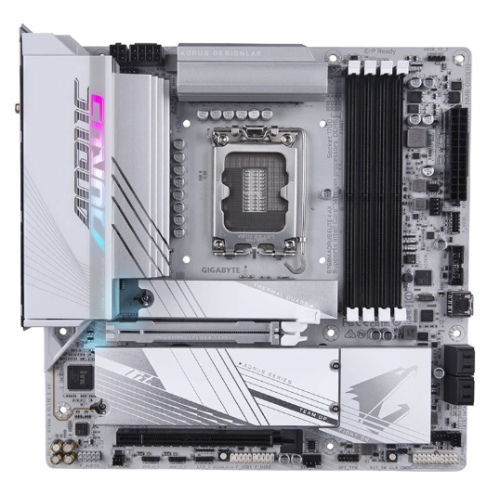

Gigabyte B760M AORUS ELITE X AX Motherboard, micro ATX, Second Hand
Gigabyte B760M AORUS ELITE X AX Motherboard, micro ATX, Second Hand
1,141 LEI 1,038 LEI
Buy now

Gigabyte B760M AORUS ELITE X AX Motherboard, micro ATX, Second Hand

-9%
  • Gigabyte B760M AORUS ELITE X AX Motherboard, micro ATX, Second Hand

0 reviews

Order this product and get 43 LEI back in your account (an account is needed). View details

In Stock
1,141 LEI
1,038 LEI
  • Miscellaneous
  • Product condition
    The motherboard is delivered without a heatsink.
    Component Type
    Motherboards
  • Processor
  • Supported Processors
    Intel Socket LGA 1700 for Intel Core 12th, 13th, and 14th generations
  • Motherboard
  • Chipset
    Intel® B760M
    Socket
    1700
    Procesor Inclus
    No
    Cooler inclus
    No
    Video OnBoard
    * Depending on the installed processor
    Tip RAM
    DDR 5
    Ports

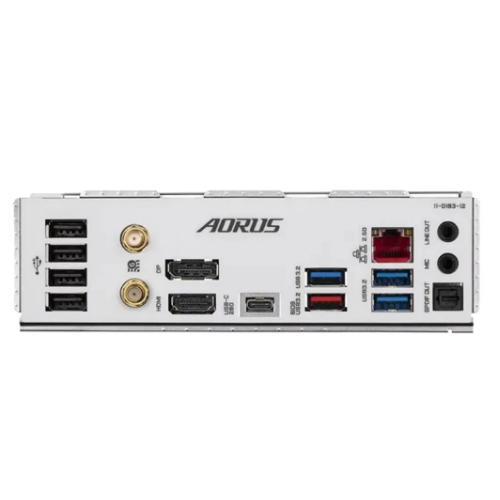

    Antenna connectors (2T2R) (x2). USB 3.2 Gen 2x2 Type-C® port (x1) supporting USB 3.2 Gen 2x2. USB 3.2 Gen 2 Type-A port (red) (x1). USB 3.2 Gen 1 ports (x3). USB 2.0/1.1 ports (x4). HDMI port (x1) (Supports up to 4096x2160@60Hz). DisplayPort (x1) (Supports up to 4096x2304@60Hz). RJ-45 port (x1). Optical S/PDIF output connector (x1). Audio jacks (x2).
    Format/Dimensiune
    mATX
  • Network
  • Model placa de retea:
    LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps). WLAN: Intel® Wi-Fi 6E AX210 Bluetooth 5.3

Designed for maximum performance

The Gigabyte B760M AORUS ELITE X AX motherboard, in micro ATX format (24.4 x 24.4 cm), is ideal for modern work or gaming systems. Compatible with Intel processors on the LGA 1700 socket, it supports Intel® Core™ generations 12, 13, and 14, providing a solid foundation for any configuration.

Superior performance and compatibility

The Intel® B760 Express chipset ensures a perfect balance between performance and consumption, allowing users to fully leverage the capabilities of the latest generation processors. With 4 DDR5 slots, the motherboard supports up to 256 GB RAM, with support for XMP, meaning you can benefit from fast speeds and stability during intensive use.

Extensive connectivity options

Expansion and storage are simplified with 1 × PCIe 5.0 x16 and 1 × PCIe 4.0 x4, ideal for the latest graphics cards or other necessary expansions. It also features 2 × M.2 PCIe 4.0 x4 for ultra-fast SSDs, without an included heatsink, allowing for the installation of a separate heat-sink to optimize thermal performance.

Modern connections for fast speeds

The motherboard offers advanced connectivity with 2.5 GbE LAN and Wi-Fi 6E + Bluetooth 5.3. This guarantees a seamless online experience, perfect for gaming or streaming. The various ports, including USB 3.2 Gen 2x2 Type-C®, HDMI, and DisplayPort, ensure easy integration of peripherals and external devices.

Audio and user-friendly interface

Enjoy a HD 7.1 audio system with a dedicated codec, plus quality capacitors that enhance the audio experience. The user-friendly BIOS allows users to overclock and customize configurations as desired.

Details about the second-hand variant

It is important to note that the motherboard does not come with a heatsink for M.2 or VRM. It is recommended to purchase a compatible heatsink, especially if you intend to heavily use fast NVMe SSDs.

Tags: motherboard, Gigabyte B760M, AORUS ELITE X AX, micro ATX, second hand, Intel LGA 1700, DDR5, Wi-Fi 6E, 2.5 GbE LAN
